CamStreamer ACAP API

Comprehensive technical documentation for CamStreamer application APIs, including authentication workflows, endpoint specifications, data models, and integration best practices.

CamStreamer App 4.x API

Read more about API licensing here

CamStreamer App 4.x functionality can be controlled using API once the application is installed and licensed. There are several parameters described below. Mind that CamStreamer App/stream is restarted every time any parameter is changed.

Sample API requests to Postman or Insomnia can be downloaded here

CamStreamer Global Parameters

You can get or set multiple global parameters at once using the following calls:

http://IPADDR[:PORT]/local/camstreamer/param/set.cgi?PARAMNAME=PARAMVALUE[&PARAMNAME=PARAMVALUE]

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5:80
PARAMNAME is a name of any parameter listed below.
PARAMVALUE is a value you would like to save to CamStreamer App. Special characters in the value has to be urlenmarkd. See URL encoding

http://IPADDR[:PORT]/local/camstreamer/param/get.cgi?list=PARAMNAME[,PARAMNAME]

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5:80
PARAMNAME is a name of any parameter listed below.

In CamStreamer App it is possible to set up several output streams directly by setting JSON array to StreamList parameter or by using simpler HTTP API. Every stream has its own parameters (listed below) which can be set or gained by calling HTTP API.

Parameter `LiveLED` (available till version 3.8.2)

Enable LED light indication on the camera. The light is ON if the stream is established. The light is off once the CamStreamer App is not able to broadcast the video . Valid values: 0, 1

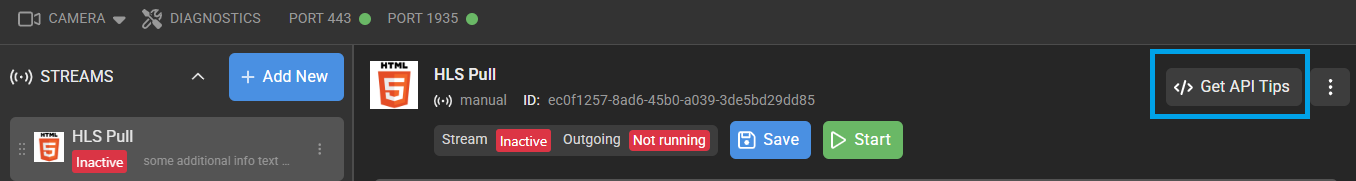

Stream Parameters

The following HTTP API call list all streams.

http://IPADDR[:PORT]/local/camstreamer/stream/list.cgi?action=get

The following POST API call updates the whole JSON configuration of CamStreamer App.

http://IPADDR[:PORT]/local/camstreamer/stream/list.cgi?action=set

You can add / update a stream by the set.cgi HTTP API call bellow. Mind that the stream added by API is not visible in the CamStreamer App user interface. If you’d like to start a broadcast on YouTube, please use YouTube Live Streaming API. It’s necessary to obtain an RTMP ingestion url / key.

http://IPADDR[:PORT]/local/camstreamer/stream/set.cgi?stream_id=STREAMID&PARAMNAME=PARAMVALUE[&PARAMNAME=PARAMVALUE]

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
STREAMID is a stream identifier (string). A new stream is created if sent stream_id does not exist. If stream_id exists current stream is modified. For API are reserved identifiers with “api” prefix.
PARAMNAME is a name of any stream parameter listed below.
PARAMVALUE is a value you would like to save to the stream. Special characters in the value has to be urlenmarkd. See URL encoding

You can get a stream parameters by the get.cgi HTTP API call bellow.

http://IPADDR[:PORT]/local/camstreamer/stream/get.cgi?stream_id=STREAMID

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
STREAMID is a stream identifier.

You can remove a stream by the remove.cgi HTTP API call bellow.

http://IPADDR[:PORT]/local/camstreamer/stream/remove.cgi?stream_id=STREAMID

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
STREAMID is a stream identifier.

Parameter `enabled`

Stop or start the stream using parameter “Enabled”. Valid values: 0, 1

Parameter `mediaServerUrl`

Valid values (for selected protocol):

RTMP

rtmp://[user:pass@]server:port[/app][/stream_name]

MPEG-TS TCP

tcp://server:port

MPEG-TS UDP

udp://server:port[?pkt_size=XXX&ttl=XXX]

HLS PULL

hls://

HLS stream is available at http://IPADDR:PORT/local/camstreamer/SIGNATURE/live.m3u8

where:
IPADDR is an IP address of the camera.
SIGNATURE get signature at http://IPADDR:PORT/local/camstreamer/param/get.cgi?list=signature

HLS PUSH

ftp://your_ftp_server/live.m3u8

SRT

Mode Caller (push): srt://:port
Mode Listener (pull): srt://server:port

You can stop or start the stream using parameter “Enabled”. Valid values: 0, 1

Parameter `inputType`

Defines what type of resource will be used.

CRS uses RTSP camera stream
CSw uses CamSwitcher App stream
RTSP_URL uses external RTSP stream

Parameter `inputUrl` EXPERIMENTAL

It is used for streaming if the inputType is selected as an external RTSP stream (RTSP_URL).

IMPORTANT: HLS playlist requires parameters resolution and videomaxbitrate in internalVapixParameters or userVapixParameters.

Example:

{
  "3577": {
    "enabled": "1",
    "active": "1",
    "audioSource": "default",
    "avSyncMsec": "0",
    "internalVapixParameters": "resolution=1920x1080&videomaxbitrate=3000",
    "userVapixParameters": "",
    "outputParameters": " -hls_time 2 -hls_list_size 5 -hls_wrap 10 ",
    "outputType": "video",
    "mediaServerUrl": "hls://",
    "inputType": "RTSP_URL",
    "inputUrl": "rtsp://root:[email protected]/axis-media/media.amp?audio=1&video=1&resolution=1920x1080",
    "forceStereo": "0",
    "streamDelay": "",
    "statusLed": "1",
    "statusPort": "",
    "callApi": "0",
    "trigger": "none",
    "schedule": "[]",
    "prepareAhead": "0",
    "startTime": "0",
    "stopTime": "0"
  }
}

Parameter `userVapixParameters`

Overwrite the default video parameters. See parameter description. You can e.g. choose different camera or View Area using parameter camera=2&resolution=1280x720&overlaypos=200%2C600.

Parameter `audioSource`

Specify the audio channel. Available values:

none disable the audio channel.
default use the audio channel from the camera (e.g. mic./line input), audio from CamSwitcher App or external URL (if selected in inputType parameter)
file: FILEPATH use an audio file FILEPATH (mka/mp3) on the file system on the camera (e.g. SD card). If you want to stream to YouTube with camera without audio, use following settings “audioSource=file:/usr/local/packages/camstreamer/tools/silence.mka”
url: URL use an external (network) audio source (markc AAC or MP3). E.g. internet radio, another camera or Axis P8221 audio enmarkr. For Axis device: rtsp://root:password@IPaddress/axis-media/media.amp?audio=1&video=0 Use audio sample rate 44.1KHz and bitrate 128Kbps. CamStreamer App is not streaming once the external audio is not available.

Parameter `avSyncMsec`

Time offset for audio/video channel in milliseconds.

Parameter `active`

Pause stream – the stream will not run, but all other processes are active. Typical API server calls in callApi – the application calls server APIs (creation and ending streams on YouTube).

Parameter `trigger`

Determines type of automation.

none automation off
inputX (X is the input number) the stream is turned on only if the given camera input is active
time stream is turned on based on a time interval (startTime / stopTime parameters)
recurrent stream is turned on based on a time schedule (schedule parameter)

Parameter `schedule`

Valid only for trigger recurrent, schedule is represented by JSON format. Schedule contains array of intervals where day is a number in range 0-6 (0 for Monday) and time is string in format HH:MM:SS. The time gap between planned events on YouTube must be at least 15 minutes – incorrect settings can cause wrong behavior.

Example:

Two intervals: Monday 8:00 to 9:30, Tuesday 10:00 to Wednesday 10:00

[{ "day_from": 0, "day_to": 0, "time_from": "08:00:00", "time_to": "09:30:00" },
 { "day_from": 1, "day_to": 2, "time_from": "10:00:00", "time_to": "10:00:00" }]

Parameter `prepareAhead`

(only trigger time) – prepares a stream for a given number of seconds before startTime (calls API, starts to stream).

Parameter `startTime`

(only trigger time) – unix timestamp for the beginning of the stream.

Parameter `stopTime`

(only trigger time) – unix timestamp for the end of the stream.

Parameter `statusLed`

Activates camera LED diode blinking during the preparation of broadcasting and lighting during streaming. If the same LED is used for more streams the LED lights after the last stream is started. Valid values: 0, 1

Parameter `statusPort`

Activates camera output with LED diode and set blinking during the preparation of broadcasting and lighting during streaming. If the same output is used for more streams the LED lights after the last stream is started. Valid values: number of camera port with output.

Get the current status of a particular stream

Get the status of your stream via the following request.

http://IPADDR[:PORT]/local/camstreamer/get_streamstat.cgi?stream_id=X

where X is the Stream ID of your stream.

Response:

{"status": 200, "message": "OK", "data": {"net_stats":"110779840 1107300413","stream_bytes_time_ms":1600092179717,"stream_bytes":568335,"start_count":1,"is_streaming":1}}

Get current YouTube Live broadcast

Redirect your viewers to the current broadcast.

https://camstreamer.com/yt-broadcast-api/SECTOKEN/CSID

where SECTOKEN and CSID are used in “Permanent link” in CamStreamer App user interface. Mind that the SECTOKEN is changed once you use a different YouTube channel.

From June 2021 the SECTOKEN and CSID are replaced with unique hash in Permanent link (for streams created from this date). For such new streams use the hash (e.g. dccZkIw35I5xnZ3k650rMuvk5HuvP123456abCd) instead of a combination of SECTOKEN/CSID.

Examples:

https://camstreamer.com/yt-broadcast-api/b7133489237eee1/S-78

https://camstreamer.com/yt-broadcast-api/dccZkIw35I5xnZ3k650rMuvk5HuvP123456abCd

Response:

{"broadcast_id":"XCIfaGvbXSs"}

Status of YouTube Live broadcast

Check whether the YouTube broadcast is live and whether the you Get information from our watchdog. It is suitable for integration with monitoring systems like Nagios, Centreon…

https://camstreamer.com/api/youtubeStatus/SECTOKEN/CSID

where SECTOKEN and CSID are used in the “Permanent link” in the CamStreamer App user interface. Mind that the SECTOKEN is changed once you use a different YouTube channel.

Response HTTP code:

200 Stream ok
404 Stream not found or bad security token
400 Stream not checked yet
400 Stream interrupted

Get the list of streams for a particular camera with its details

If you need to show a list of scheduled streams on your website along with their permanent links, you can use this GraphQL application interface.

To get a list of streams, use this POST call:

https://camstreamer.com/api/Stream/graphql

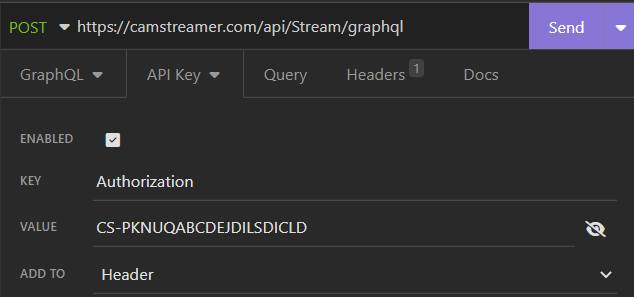

Authorization via API key:

KEY: Authorization

VALUE: cameraLicenseKey

Example:

Query with serial number and license code (the same as in Authorization)

query {
GetStreamInfoList(
licenseCode: "CS-JYUHJDU6I3ABCDEFGHIJ",
serialNumber: "B8A44F0ABCDEF"
) {
streamId
title
streamType
description
platformType
cameraTimezone
startTime
stopTime
previewLink
resolution
}
}

Response with URL encoded permanent link:

{
"data": {
"GetStreamInfoList": [
{
"streamId": 36,
"title": "Title of one-time event",
"streamType": "onetime",
"description": "My description",
"platformType": "youtube",
"cameraTimezone": "Europe\/Berlin",
"startTime": 1677840720,
"stopTime": 1677844365,
"previewLink": "https%3A%2F%2Fcamstreamer.com%2Fredirect%2FyA8T7AyGg23PrXJNI9zqZDr"
}
]
}
}

Practical Examples

When you’re creating a new stream, use a different ID than the one created by the CamStreamer App. Our application uses whole numbers higher than 10. Use a prefix like “api_01”. A YouTube stream may be controlled via an API, but YouTube authorization first has to be carried out via a user interface.

In order for the camera to stream, the following conditions must be met: parameter enabled = 1, parameter active = 1 and parameter trigger = none or automation was active (input on or correct time interval)

Creation / modification of a new nonstop RTMP stream

PARAMETERS:

"enabled":"1",
"audioSource":"default",
"mediaServerUrl":"rtmp:\/\/a.rtmp.youtube.com\/live2\/rfp-test-2926.q9yk-3wv0-4zzg-78ks"

You can change a stream parameters by the set.cgi HTTP API call bellow.

http://IPADDR[:PORT]/local/camstreamer/stream/set.cgi?stream_id=STREAMID&enabled=1&audioSource=default&mediaServerUrl=rtmp://a.rtmp.youtube.com/live/rfp-test-2926.q9yk-3wv0-4zzg-78ks

where

Stopping an RTMP stream

PARAMETERS:

"enabled":"0"

You can stop a stream by the set.cgi HTTP API call bellow.

http://IPADDR[:PORT]/local/camstreamer/stream/set.cgi?stream_id=1057&enabled=0

where

Creation / modification of a new RTMP stream by pressing button 1

PARAMETERS:

"enabled":"1",
"audioSource":"default",
"trigger":"input0",
"mediaServerUrl":"rtmp:\/\/a.rtmp.youtube.com\/live2\/rfp-test-2926.q9yk-3wv0-4zzg-78ks"

Audio parameter:
– for microphone use “default”
– if the camera has no audio and you want to stream e.g. to YouTube where the audio is required, use this URL encoded value for audio “file:/usr/local/packages/camstreamer/tools/silence.mka”

You can create / modificate a stream by the set.cgi HTTP API call bellow.

http://IPADDR[:PORT]/local/camstreamer/stream/set.cgi?stream_id=1057&enabled=1&audioSource=default&trigger=input0&mediaServerUrl=rtmp%3A%2F%2Fa.rtmp.youtube.com%2Flive2%2Frfp-test-2926.q9yk-3wv0-4zzg-78ks

where

Creation / modification of a new RTMP stream from 2019-03-04 11:10 to 2019-03-04 14:10 in UTC+01

"enabled":"1",
"audioSource":"default",
"trigger":"time",
"startTime":"1551694200",
"stopTime":"1551705000",
"mediaServerUrl":"rtmp:\/\/a.rtmp.youtube.com\/live2\/rfp-test-2926.q9yk-3wv0-4zzg-78ks"

You can create / modificate a stream by the set.cgi HTTP API call bellow.

http://IPADDR[:PORT]/local/camstreamer/stream/set.cgi?stream_id=1057&enabled=1&audioSource=default&trigger=time&startTime=1551694200&stopTime=1551705000&mediaServerUrl=rtmp%3A%2F%2Fa.rtmp.youtube.com%2Flive2%2Frfp-test-2926.q9yk-3wv0-4zzg-78ks

where

CSt WebSocket API

Over the WebSocket connection, you can receive information about the statuses of streams.

Authorization

Get authorization token for WebSocket API. The token is valid only for 30 seconds or until the first connection.

Request:

http://USER:PASS@IPADDR[:PORT]/local/camstreamer/api/ws_authorization.cgi

where

USER is a user name. E.g. root
PASS is a password. E.g. pass

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Response:

{  "status": 200,  "message": "YZWG1nBG7HtRc8Owy61P",}

Connection to CSt WebSocket

You must use authorization as the first message. After successful authorization, the initialization data are sent. On authorization error, WebSocket is closed.

Used protocol (Sec-WebSocket-Protocol) is events

WebSocket address:

wss://IPADDR[:PORT]/local/camstreamer/events

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Request:

{
"authorization": "80aXr8Vm0iFZl3Rlo2tR"
}

Response:

{
  "type": "authorization",
  "state": "OK"
}

To resend initialization data user request below.

Request:

{
  "command": "sendInitData"
}

Response:

{"type":"init","data":{"type":"StreamState","streamID":"117930","enabled":0,"active":1,"automationState":1,"isStreaming":0}}
{"type":"init","data":{"type":"PortChanged","port":0, "value":0}}

Type of CSt events

StreamState – attributes: type,streamID, enabled, active, automationState, isStreameing

{
"type": "StreamState",
"streamID": "117930",
"enabled": 0,
"active": 1,
"automationState": 1,
"isStreaming": 0
}

CS_API_SUCCESS – attributes: type, streamID, apiCall, message

{
"type": "CS_API_SUCCESS",
"streamID": "117930",
"apiCall": "startBroadcast",
"message": "Broadcast started."
}

PortChanged – attributes: type, port, value

{
"type": "init",
"data": {
"type": "PortChanged",
"port": 0,
"value": 0
}
}

CamOverlay App 3.x and 4.x

The CamOverlay App is an application running inside the camera on an Axis Camera Application Platform (ACAP). Below, you can find information about the application’s API. You can also check API examples directly in the application’s user interface under API Tips. Each graphic widget includes examples of the most common and useful API calls displayed at the top of its settings.

Please take into account that more than 4 active services per Video Channel can be in conflict with the Axis overlay. Also, to stay in the safe zone, a maximum of eight services running in all video channels is recommended. Also, be aware of the load of your camera if you are using a large number of animated services e.g., scrolling text in InfoTicker.

How overlays are assigned to outgoing streams:
Applications using SDK3/SDK4 (under FW 12.5) – Overlays are assigned to a selected position for a selected resolution. They are visible in all outgoing streams for the same video channel and are not scaled. They always remain in a fixed position. For multiple streams with or without widgets, create a new view area in the camera settings (not available for PTZ cameras).
Applications using SDK12 (FW 12.5 and higher) – Overlays are shown only in streams that match the configured resolution and video channel set for each graphics widget.
To display the same widget in multiple resolutions, you must create a separate widget for each resolution (copy the original widget and select the desired resolution).

Read more about API licensing here

Sample API requests to Postman and Insomnia can be downloaded here

CamOverlay Global Parameters

CamOverlay App functionality can be controlled using the API once the application is installed and licensed. There are several parameters described below. You can list all of them or just a single parameter by HTTP call:

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=list&amp;group=CamOverlay[.PARAMNAME]

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PARAMNAME is a name of any parameter.

Any parameter can be changed using a HTTP call to the camera:

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=update&amp;CamOverlay.PARAMNAME=PARAMVALUE

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PARAMNAME is a name of any parameter listed below.
PARAMVALUE is a value you would like to save to CamOverlay App. Special characters in the value have to be urlencoded. See URL encoding

Parameter Enabled

Start or stop all overlays in cameras video stream. Valid values: 0, 1

Get and change the whole configuration of services

Overlay Object

Every overlay has to have six required parameters:

id is a unique identifying number of the overlay.
enabled start or stop overlay in the video stream. Because of camera restriction only two overlays can be enabled at once!
automationType set the way how the visibility of overlay is controlled. (See automation section)
schedule is a schedule for enabling/disabling overlay.
name is an overlay type. Valid values: images, customGraphics, ptzCompass, infoticker, screenSharing, pip, accuweather
cameraList assigns graphics to selected Video Channels. Valid values: 0, 1, 2…
(until version 2.1.14 is used only by cameras with support for only one channel, versions 2.1.15 and higher are backward compatible with this parameter)

Get the configuration of services

Complete settings of overlay services in JSON format can be obtained with a GET call below. The base structure contains an array “services” with overlay objects.

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/services.cgi?action=get

where

USER is a user name. E.g. root
PASS is a password. E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Example of what you get:

{
"services": [
{
"id": 1,
"enabled": 1,
"automationType": "manual",
"cameraList": [
0
],
"schedule": "",
"name": "infoticker",
"customName": "",
"showClock": 1,
"clockType": "24h",
"textColor": "0,0,0,1",
"bgColor": "255,255,255,1",
"weatherLocation": "",
"weatherLocationName": "",
"weatherLang": "en-us",
"weatherUnits": "Metric",
"numberOfLines": 1,
"switchingTime": 5,
"crawlLeft": false,
"crawlSpeed": 1,
"coordSystem": "bottom",
"pos_y": 0.05,
"width": 1920,
"height": 1080,
"zIndex": 0,
"font": "classic",
"fontSize": 40,
"sourceType": "text",
"source": "",
"chosen": false,
"selected": false
},
{
"id": 5,
"enabled": 1,
"automationType": "time",
"cameraList": [
0
],
"schedule": "",
"name": "images",
"customName": "",
"width": 1920,
"height": 1080,
"zIndex": 0,
"overlayList": [
{
"active": false,
"coordSystem": "top_left",
"pos_x": 10,
"pos_y": 10,
"imgPath": "",
"imgName": "",
"duration": 5,
"scale": 1
}
]
}
]
}

Set the configuration of services

If you want to update your service settings, you must use POST call:

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/services.cgi?action=set

where

USER is a user name. E.g. root
PASS is a password. E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5.

GET request has a limit of 2048 characters (in Unicode). Updated information via the given HTTP requests is not saved persistently in the camera. Therefore, data is lost after a camera restart. In order to avoid the loss of information, it is necessary to update data on a regular basis or update the whole JSON CamOverlay App configuration via a POST request. (See section: Set the configuration of services)

Automation

Automation is set via attribute automationType and can have the following values:
manual – control via the user interface of the app or HTTP request (below)
schedule – displaying of overlays based on the week schedule
inputX – X is the number of camera input, input 1 is set with number 0 (zero-based)

InvertInput
Parameter invertInput inverts the logic of graphics activation based on the port state. Possible values:
true – activates the graphics when the port state is 1
false – activates the graphics when the port state is 0

HTTP request to display/hide the particular overlay

For example:

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/enabled.cgi?SERVICE_ID=PARAMVALUE&SERVICE_ID=PARAMVALUE

where

USER is a user name. E.g. root
PASS is a password. E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
SERVICE_ID is an ID of the overlay service which you want to change and is written as id_X, X is the number of the service, id_X can be replaced with name_myservice, name_myservice=1 enables the service with name “myservice”
PARAMVALUE shows or hides a particular overlay. Valid values: 0, 1

Updated information via the given HTTP requests is not saved persistently in the camera. Therefore, data is lost after a camera restart. In order to avoid the loss of information, it is necessary to update data on a regular basis or update the whole JSON CamOverlay App configuration via a POST request. (See section: Set the configuration of services)

Service parameters

Images Parameters

width is the width of the stream for which the overlay is set.
height is the height of the stream for which the overlay is set.
overlayList is an array of image objects. Every image object has parameters like position or duration (listed below).

Image Parameters

coordSystem is the start of the coordinate system from which the offset is computed. Valid values: top_left, top_right, bottom_left, bottom_right, left, right, top, bottom, center
pos_x is an offset in pixels in X axis direction in the video stream.
pos_y is an offset in pixels in Y axis direction in the video stream.
imgPath is a path to an image saved in the camera memory or an image url.
imgName is an identifier of an image in the user interface.
duration is the duration of an image appearing in the video stream.

Scripter Overlay Parameters

Scripter is a service for external scripts that can render images with Websocket API (see section below).

identifier is just for identification of the script that created this service.

API of services

Custom Graphics

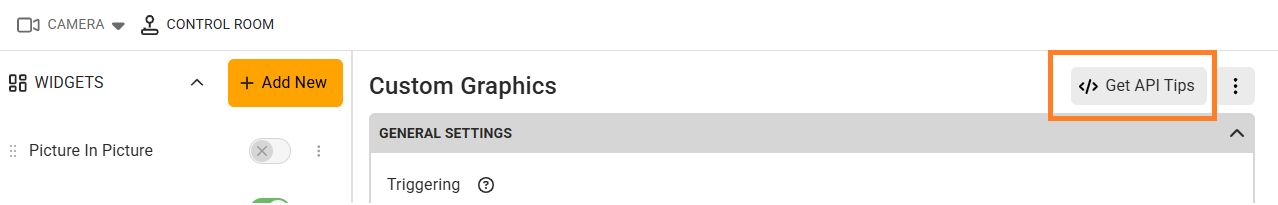

It is possible to update texts in your text fields, switch between text variants, modify the position of graphics, and change the background image.

Complete settings of service in JSON format can be obtained with GET call. (See section: Set the configuration of services)

Update text and text colors in text fields

Following request updates texts in text fields. Conditions:
a) use your names of fields as identification
b) variations of text fields are numbered from 0 in API (text1 has index 0)

For example:

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/customGraphics.cgi?action=ACTION&service_id=SERVICE_ID&FIELD_NAME=YOUR_TEXT&FIELD_NAME_COLOR=FIELD_TEXT_COLOR[&FIELD_NAME=YOUR_TEXT]

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/customGraphics.cgi?action=ACTION&service_id=SERVICE_ID&FIELD_NAME_INDEX=FIELD_INDEX_NUMBER

where

USER is a user name. E.g. root
PASS is a password. E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
ACTION this parameter has two possible values, update_text or update_image.
SERVICE_ID is an ID of the overlay service that you want to change, service_id can be replaced with service_name which uses a custom name filled in each service
FIELD_NAME is an ID of a particular text field with default or changed name.
YOUR_TEXT is your title.
FIELD_NAME_COLOR is an ID of a particular text field color. E.g. field1_color.
FIELD_TEXT_COLOR is a color defined as 255255255 or with an alpha channel as 255255255255.
FIELD_NAME_INDEX is an ID of a particular text field variant. E.g. field1_index.
FIELD_TEXT_NUMBER is a number of a particular text field variant. E.g. 0 for text1.

Modification of the background image

All parameters are optional except service_id and action

Update of the picture from your storage

curl -u USER:PASS -X POST --data-binary "@PATH_TO_THE_PICTURE" "http://IPADDR[:PORT]/local/camoverlay/api/customGraphics.cgi?action=update_image&service_id=SERVICE_ID"

where

USER is a user name. E.g. root
PASS is a password. E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PATH_TO_THE_PICTURE the path to your picture in storage.
SERVICE_ID is an ID of the overlay service that you want to change, service_id can be replaced with service_name which uses a custom name filled in each service

Update of the picture from camera storage

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/customGraphics.cgi?action=update_image&service_id=SERVICE_ID&image=PATH_TO_THE_PICTURE

Update of the picture position

You can combine pos_x, pos_y and coord_system

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/customGraphics.cgi?action=update_image&service_id=SERVICE_ID&coord_system=COORDSYSTEM&pos_x=POSX&pos_y=POSY

where

COORDSYSTEM is the start of the coordinate system from which the offset is computed. Valid values: top_left, top_right, bottom_left, bottom_right, left, right, top, bottom, center
POSX is an offset in pixels in X axis direction in the video stream.
POSY is an offset in pixels in Y axis direction in the video stream.

Info Ticker

In Info Ticker, text can be set into the video stream directly by HTTP API call.

HTTP API call for text change:

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/infoticker.cgi?service_id=SERVICEID&text=YOUR_TEXT

where

USER is a user name. E.g. root
PASS is a password . E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
SERVICEID is an ID of the overlay service that you want to change.
YOUR_TEXT is your title.

COv WebSocket API

Over the WebSocket connection, you can receive information about the status of services and about their turning on and off. WebSockets are available from version 2.1.7

Authorization

Get authorization token for WebSocket API. The token is valid only for 30 seconds or until the first connection.

Request:

http://USER:PASS@IPADDR[:PORT]/local/camoverlay/api/ws_authorization.cgi

where

USER is a user name. E.g. root
PASS is a password. E.g. pass

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Response:

{
  "status": 200,
  "message": "YZWG1nBG7HtRc8Owy61P",
}

Connection to the COv WebSocket

You must use authorization as the first message. After successful authorization, the initialization data are sent. On authorization error, the WebSocket is closed.

Used protocol (Sec-WebSocket-Protocol) is events

WebSocket address:

wss://IPADDR[:PORT]/local/camoverlay/service/ws

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Request:

{
  "authorization": "80aXr8Vm0iFZl3Rlo2tR"
}

Response:

{
  "type": "authorization",
  "state": "OK"
}

To resend initialization data user request below.

Request:

{
  "command": "sendInitData"
}

Response:

{
  "type": "init",
  "data": {
    "type": "ServiceStart",
    "serviceId": 2
  }
}

Type of COv events

ServiceStart – attributes: type, serviceId

{"type":"ServiceStart","serviceId":2}

ServiceStop – attributes: type, serviceId

{"type":"ServiceStop","serviceId":2}

Realtime drawing API

There is a possibility to draw your own graphic directly in the camera using the CamOverlay WebSocket API. This technology is used, for example, by the CamScripter App for the custom integrations of other systems. The drawing API is based on the Cairo graphic library (https://cairographics.org/), expanded with some help functions and functions needed by the CamOverlay App. However, not all functions from the Cairo library are implemented. There is only a subset that will be extended in the future if it is required. All communication through WebSocket is done in JSON format. Client sends a command with call_id, and the response always contains the same ID for command identification.

For example we can create image by sending command:

{"call_id": 0, "command": "cairo_image_surface_create", "params": ["CAIRO_FORMAT_ARGB32", 200, 200]}

Response:

{"var": "surface0", "call_id": 0}

Variable name surface0 can be used for accessing this variable in other functions: cairo_create(cairo_surface_t *target). For simplification, it is recommended to use the CamStreamer node.js library created for the CamScripter App (here). There are also some more examples of usage.

Currently implemented Cairo functions

Image Surfaces

cairo_image_surface_create(cairo_format_t format, int width, int height)

cairo_surface_write_to_png(cairo_surface_t *surface, const char *filename)

cairo_surface_destroy(cairo_surface_t *surface)

Paths

cairo_rectangle(cairo_t *cr, double x, double y, double width, double height)

cairo_move_to(cairo_t *cr, double x, double y)

cairo_line_to(cairo_t cr, double x, double y)

cairo_new_sub_path(cairo_t cr)

cairo_close_path()

cairo_arc(cairo_t *cr, double xc, double yc, double radius, double angle1, double angle2)

Cairo

cairo_create(cairo_surface_t *target)

cairo_destroy(cairo_t *cr)

cairo_save(cairo_t *cr)

cairo_restore(cairo_t *cr)

cairo_set_source_rgb(cairo_t *cr, double red, double green, double blue)

cairo_set_source_rgba(cairo_t *cr, double red, double green, double blue, double alpha)

cairo_fill(cairo_t *cr)

cairo_stroke(cairo_t *cr)

cairo_set_line_width(cairo_t *cr, double width)

cairo_surface_flush(cairo_surface_t *surface)

cairo_set_source_surface(cairo_t *cr, cairo_surface_t *surface, double x, double y)

cairo_paint(cairo_t *cr)

cairo_clip(cairo_t *cr)

cairo_reset_clip(cairo_t *cr)

Transformations

cairo_translate(cairo_t *cr, double tx, double ty)

cairo_scale(cairo_t *cr, double sx, double sy)

cairo_rotate(cairo_t *cr, double angle)

cairo_set_matrix(cairo_t *cr, const cairo_matrix_t *matrix)

cairo_get_matrix(cairo_t *cr, cairo_matrix_t *matrix)

cairo_identity_matrix(cairo_t *cr)

Text

cairo_show_text(cairo_t *cr, const char *utf8)

cairo_set_font_size(cairo_t *cr, double size)

cairo_text_extents(cairo_t *cr, const char *utf8, cairo_text_extents_t *extents)

cairo_set_font_face(cairo_t *cr, cairo_font_face_t *font_face)

Font

cairo_font_face_destroy(cairo_font_face_t *font_face)

Extended functions

write_text(cairo_t *cr, const char * text, const int x, const int y, const int width, const int height, const char *align, const char *textFitMethod)

Write text to box on position x, y, width, height [px]. Align should be one of the values: A_LEFT, A_RIGHT, A_CENTER.
TextFitMethod options:
TFM_SCALE – Text size is adjusted to the width and height of the box.
TFM_TRUNCATE – Text size truncated to the width of the box.
TFM_OVERFLOW – Text overflows the box.

upload_image_data(const char * base64)

Upload an image to the CamOverlay App and return the variable name and dimensions of that image.

upload_font_data(const char * base64)

Upload font to the CamOverlay App and return variable name.

matrix_destroy(cairo_matrix_t *matrix)

Release allocated memory for the matrix.

show_cairo_image_v2(cairo_surface_t *surface, const double x, const double y, const int * cameraList, const int zIndex)

Show image in CamOverlay App on positions x, y. The positions in coordinates -1.0,-1.0 (upper left) / 1.0,1.0 (bottom right). The image is shown in all video channels specified by cameraList with the given zIndex.

Deprecated:

remove_image(const int serviceID)

Remove the image in the CamOverlay App service with the given ID.

CamSwitcher App 2.x API

The CamSwitcher App is an application running inside the camera on an Axis Camera Application Platform (ACAP). It offers the possibility to switch between up to five AXIS network cameras, including video clips saved on the camera’s SD card, while also supporting live stream commentary and mixing two audio sources together. Below, you can find information about the application’s API. You can also check API examples directly in the application’s user interface under API Tips.

The process of switching between Live Views can be performed manually, automatically via predefined playlists, or programmed via API commands. Simply choose your master audio and generate a single output video stream in real-time.

The CamSwitcher App must be installed on a camera with an ARTPEC-6 processor or higher (see compatibility). The rest of the cameras used as additional video and audio sources require at least an ARTPEC-5 chipset with the main H.264 profile (see chipset). You’ll also need a CamStreamer App to stream your video on a streaming platform of your choice.

The port used in HTTP requests is the HTTP port of the camera, which is 80 by default. If it is not changed, you do not need to specify it.

Read more about API licensing here

Sample API requests to Postman or Insomnia can be downloaded here

Get the RTSP link of the video stream

The video access expires after 5 min and you can use it only once. If you need a persistent RTSP link, generate it via the UI in the General Settings.

http://IPADDR[:PORT]/local/camswitcher/output_info.cgi

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5:80

Response example:

{
"status": 200,
"message": "OK",
"data": {
"rtsp_url": "rtsp://127.0.0.1:1554/6da0c033531ad459e64cd9847e6c994014f4ef29afe3f46afeab82a222805200",
"ws": "ws://127.0.0.1/local/camswitcher/video",
"ws_initial_message": "{\"type\":\"ALIAS_NAME\", \"data\": \"6da0c033531ad459e64cd9847e6c994014f4ef29afe3f46afeab82a222805200\"}"
}
}

To play the video, replace the localhost IP address with the real IP address of the camera.

Get the list of available playlists

Note that for the CamSwitcher App, each playable object is considered a playlist. It could be a camera with audio, a video clip with audio, a playlist that contains more video clips, and cameras with audio.

Example:

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/playlists.cgi?action=get

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Response example:

{
  "status": 200,
  "message": "OK",
  "data": {
    "s4776be33-bcca-45a3-912b-e2840c6c06de": {
      "niceName": "Video_clip",
      "loop": false,
      "isFavourite": false,
      "stream_list": [{
        "id": "78b12cf8-4d91-4e2c-a444-92e14543b8be",
        "timeout": 0,
        "repeat": 1,
        "isTimeoutCustom": false,
        "video": {
          "clip_name": "s4776be33-bcca-45a3-912b-e2840c6c06de"
        },
        "audio": {
          "clip_name": "s4776be33-bcca-45a3-912b-e2840c6c06de"
        }
      }],
      "keyboard": {},
      "channel": "av"
    },
    "cdb04b0cb-0c7b-4292-aa0f-7920eb73333e": {
      "niceName": "V5925 - B8A44F009C1F",
      "loop": false,
      "isFavourite": false,
      "stream_list": [{
        "id": "dfe22a89-7e8d-40b2-a59c-f25c6226efb0",
        "timeout": 0,
        "repeat": 1,
        "isTimeoutCustom": false,
        "video": {
          "stream_name": "cdb04b0cb-0c7b-4292-aa0f-7920eb73333e"
        },
        "audio": {
          "clip_name": "sd2b03f67-31c7-40b2-99c1-5079dd0dab65"
        }
      }],
      "keyboard": {},
      "channel": "av"
    }
  }
}

The name of the playlist is the first chain placed before the niceName parameter. Name of the playlist for camera V5925 is cdb04b0cb-0c7b-4292-aa0f-7920eb73333e.

Camera playlists have always prefix “c”, and true playlists always have a prefix “p”.

Examples:

Camera playlist: c2585a341-2677-4d0f-864e- 63055fe17b6b
True playlist: pbb1289ed-15e3-4487-a2d6- fecc80f9a4c0

Start a particular playlist

Use the playlist name from the previous example of how to get a list of playlists.

Example:

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/playlist_switch.cgi?playlist_name=PLAYLISTNAME

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

PLAYLISTNAME is the name of a particular playlist which contains a combination of audio and video, e.g. cdb04b0cb-0c7b-4292-aa0f-7920eb73333e

Get the list of playlists in the queue

Via the request below, you can list playlist names waiting in the queue to be played.

Example:

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/playlist_queue_list.cgi

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Push a particular playlist to the queue

Push a particular playlist from the current queue.

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/playlist_queue_push.cgi?playlist_name=PLAYLISTNAME

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

PLAYLISTNAME is the name of a particular playlist which contains a combination of audio and video, e.g. cdb04b0cb-0c7b-4292-aa0f-7920eb73333e

Play the next playlist from the queue

Play the next playlist from the current queue.

Example:

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/playlist_queue_play_next.cgi

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Clear the playlist queue

Clear the current playlist queue

Example:

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/playlist_queue_clear.cgi

Switch playlist immediately

Switch playlist immediately. Same as a sequence: playlist_queue_clear.cgi, playlist_queue_push.cgi, playlist_queue_play_next.cgi

Example:

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/playlist_switch.cgi?playlist_name=PLAYLISTNAME

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

PLAYLISTNAME is the name of a particular playlist which contains a combination of audio and video, e.g. cdb04b0cb-0c7b-4292-aa0f-7920eb73333e

Get the list of available clips

Reading of available clips can be useful e.g. when you want to switch master audio and need to know the clip name.

http://IPADDR[:PORT]/local/camswitcher/react/local/camswitcher/api/clips.cgi?action=get

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Change master audio output

Via the requests below, you can change the master audio output.

Configuration of master audio:

{
  "master_audio": {
    "type": "NONE",
    "stream_name": "",
    "clip_name": ""
  }
}

type (string) * – type of master audio (NONE / SILENCE / STREAM / CLIP)
stream_name (string) – stream identifier for type = STREAM
clip_name (string) – clip identifier for type

Example of master audio change to clip:

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=update&camswitcher.masterAudio={"type":"CLIP","clip_name":"CLIPNAME"}

Example of master audio change to stream:

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=update&camswitcher.masterAudio={"type":"STREAM","stream_name":"STREAMNAME"}

Example of master audio change to respect audio of playing source:

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=update&camswitcher.masterAudio={"type":"NONE"}

Example of master audio change to silence:

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=update&camswitcher.masterAudio={"type":"SILENCE"}

Example of how to get the currently set master audio:

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=list&group=camswitcher.masterAudio

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

CSw WebSocket API

Over the WebSocket connection, you can receive information about events within the CamSwitcher App and stream availability.

Authorization

Get an authorization token for the WebSocket API. The token is valid only for 30 seconds or until the first connection.

Request:

http://USER:PASS@IPADDR[:PORT]/local/camswitcher/api/ws_authorization.cgi

where

USER is a user name. E.g. root
PASS is a password. E.g. pass

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Response:

{  "status": 200,  "message": "YZWG1nBG7HtRc8Owy61P",}

Connection to WebSocket

You must use authorization as the first message. After successful authorization, the initialization data are sent. On authorization error, the WebSocket is closed.

Used protocol (Sec-WebSocket-Protocol) is events

WebSocket address:

wss://IPADDR[:PORT]/local/camswitcher/events

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Request:

{
"authorization": "80aXr8Vm0iFZl3Rlo2tR"
}

Response:

{
  "type": "authorization",
  "state": "OK"
}

To resend the initialization data user request below.

Request:

{
  "command": "sendInitData"
}

Response:

{"type":"init","data":{"type":"SwitcherStart","default_playlist_id":"c26b737ea-1178-4f9e-851c-479cbdd6e97d"}}
14:29:19
{"type":"init","data":{"playlist_active_stream":0,"stream_name":"c4f673956-99c5-4a92-8854-c369d1f7da27","playlist_name":"c4f673956-99c5-4a92-8854-c369d1f7da27","type":"StreamSwitchVideo"}}
14:29:19
{"type":"init","data":{"playlist_active_stream":0,"stream_name":"c4f673956-99c5-4a92-8854-c369d1f7da27","playlist_name":"c4f673956-99c5-4a92-8854-c369d1f7da27","type":"StreamSwitchAudio"}}
14:29:19
{"type":"init","data":{"type":"StreamAvailable","stream_name":"c4f673956-99c5-4a92-8854-c369d1f7da27","state":true}}
14:29:19
{"type":"init","data":{"type":"StreamAvailable","stream_name":"c26b737ea-1178-4f9e-851c-479cbdd6e97d","state":true}}

Change the PTZ position of the camera

For PTZ changes, use the AXIS API directly.

Example:

http://IPADDR[:PORT]/axis-cgi/com/ptz.cgi?camera=CAMERAID&gotoserverpresetname=PTZNAME

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

CAMERAID is an ID of a View Area of your camera. For real PTZ cameras, use the value 1

PTZNAME is the name of your PTZ position and is case sensitive

CamScripter App 2.x API

The CamScripter App is an application running inside the camera on an Axis Camera Application Platform (ACAP) and can automate all CamStreamer applications. Below, you can find information about the application’s API.

The CamScripter App functionality can be controlled using the API once the application is installed and licensed.

NOTICE

Read here how to create your own micro application for the CamScripter App.

Documentation of our library and examples of the app can be found on our GitHub.

Read more about API licensing here

Sample API requests to Postman and Insomnia can be downloaded here

Package format of micro-app for the CamScripter App

The CamScripter package is a .zip file containing all the manifest, Node.js scripts, and static files for UI (images, frontend JS, CSS,…).

File manifest.json

The manifest.json is required in each package. The file contains a json object with the following attributes:

package_name, package_menu_name, package_version, vendor, required_camscripter_version, ui_link is link to UI (optional)

Main script

The main.js is required in each package. This is the Node.js script that is started once the package starts.

Environment variables

Each micro application running in the CamScripter App environment has access to the following variables:

HTTP_PORT see chapter HTTP Proxy
HTTP_PORT_PUBLIC proxy without authorization. See chapter HTTP Proxy
INSTALL_PATH
PERSISTENT_DATA_PATH folder, which is suitable for permanent data. All data persists after a restart of the camera or a package upgrade.
PACKAGE_NAME

Libs

All required JS libraries should be part of the package.

Package configuration

The PackageConfigurations parameter is used to enable or disable packages. Value is in JSON format.

Example:

{"package_name":{"enabled": true}}

Install package

Basic cURL usage:

curl --user USER:PASS -F file=PACKAGE_NAME http://IPADDR[:PORT]/local/camscripter/package/install.cgi

where

USER is a user name. E.g. root
PASS is a password. E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package on your computer. E.g. clock.zip

Example:

curl --user root:pass -F [email protected] http://127.0.0.1:52520/local/camscripter/package/install.cgi

Remove package

http://IPADDR[:PORT]/local/camscripter/package/remove.cgi?package_name=PACKAGE_NAME

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package that you want to remove. E.g. clock

http://127.0.0.1:52520/local/camscripter/package/remove.cgi?package_name=clock

List all installed packages

http://IPADDR[:PORT]/local/camscripter/package/list.cgi

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Response example of list action in JSON format:

[{
  "package_name": "doorController",
  "package_menu_name": "Door Controller",
  "package_version": "1.1.1",
  "vendor": "Camstreamer s.r.o.",
  "required_camscripter_version": "1.2.3",
  "ui_link": "/local/camscripter/package/doorController/index.html"
}, {
  "package_name": "clockAnalog",
  "package_menu_name": "Analog Clock",
  "package_version": "1.0.1",
  "vendor": "Camstreamer s.r.o.",
  "required_camscripter_version": "1.2.3",
  "ui_link": "/local/camscripter/package/clockAnalog/index.html"
}]

Set or get settings for application

This is usually used from the package UI. Settings should be in JSON format. JSON is stored in /package_name/localData/settings.json and is preserved while the package upgrades. The SIGINT signal is sent to the package if new settings are made.

http://IPADDR[:PORT]/local/camscripter/package/settings.cgi

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Parameters:

PACKAGE_NAME is the name of the package.
ACTION specify action ( set / get ).

HTTP Proxy

Use the HTTP proxy if the package needs an API. The CamScripter App forwards any http(s) request coming to the default HTTP server on the camera as http(s)://IPADDR[:PORT]/local/camscripter/proxy/PACKAGE_NAME/* to http(s)://127.0.0.1:PORT2/* The PORT2 is a unique number defined as an environment variable. The default HTTP server on the camera requires HTTP authorization (basic or digest).

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package. E.g. clock

Redirected to package http port.

http://IPADDR[:PORT]/local/camscripter/proxy/PACKAGE_NAME/*

Example:

http://192.168.1.5/local/camscripter/proxy/clock/test.cgi

Redirected to package http public port.

http://IPADDR[:PORT]/local/camscripter/proxy_public/PACKAGE_NAME/*

proxy.cgi

Any HTTP(S) request is forwarded to the target camera. You can use it for any VAPIX command.

HINT

The proxy implementation allows you to have a fully functional user interface even if you access the camera of the device with the script from a non-local IP address.

HTTP command:

http://IPADDR[:PORT]/local/camscripter/proxy.cgi

where
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5:80

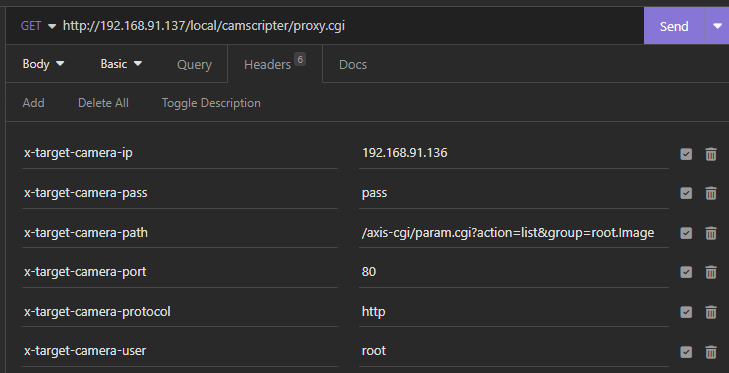

Headers of the HTTP command:

x-target-camera-protocol – target camera protocol: http / https / https_insecure
x-target-camera-ip – target camera IP address
x-target-camera-port– target camera port
x-target-camera-path – target camera path
x-target-camera-user – target camera username
x-target-camera-pass – target camera password

Example:

HTTP VAPIX request for view areas on set camera.

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=list&group=root.Image

Access to static html

Access to path /package_name/html/

http://IPADDR[:PORT]/local/camscripter/package/PACKAGE_NAME/*

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package. E.g. clock

Search for cameras on the local network

With this endpoint, you can scan the local network, display the available cameras to the user, and let the user select a camera via the user interface and automatically fill in the desired IP address. The solution uses the mDNS protocol and mDNS camera names.

/network_camera_list.cgi

Response:

{
  "camera_list": [{
    "name": "AXIS A8207-VE - ACCC8EBFD3E5",
    "ip": "192.168.91.211"
  }, {
    "name": "AXIS Demographic Identifier - AXIS Q3515 - ACCC8EBE6D6F",
    "ip": "192.168.91.208"
  }]
}

Offline ACAP Licensing

This licensing method is used for cameras in offline environments.

Installing the app

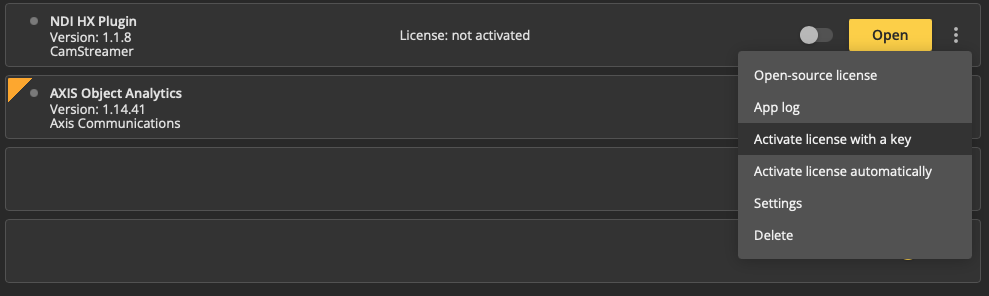

Before activating the license, you have to install the appropriate ACAP application on your camera. You can download the required installation package from here. The installation can be done manually in the “apps” section in the Axis camera user interface, via VAPIX API, or through Axis Device Manager.

Generating a signature for the camera on our server

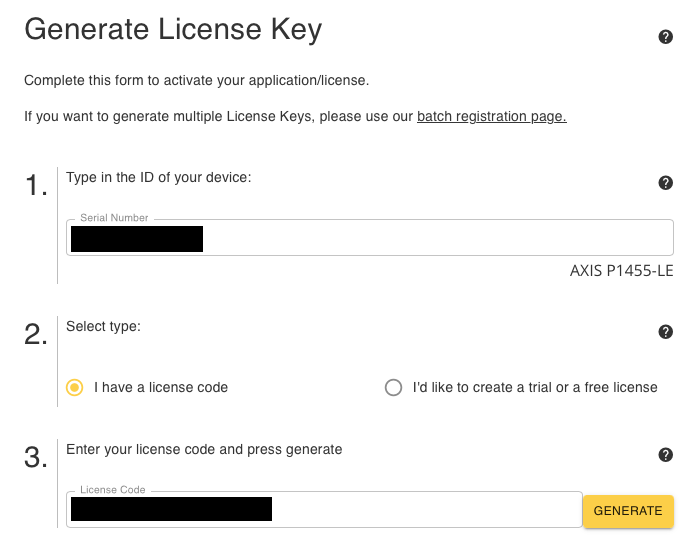

Send the camera information and assign an unused license code to your camera on our server. A trial license or a full license can be obtained via our web page.
The license can be activated via a GET request below, on a computer with internet access.

https://camstreamer.com/license-api/activate?serial_number=SERIAL_NUMBER&app_name=APP_NAME&apiVersion=v2&license_code=LICENSE_CODE&email=EMAIL

where

SERIAL_NUMBER is the serial number of the camera you assign the license to. E.g. B8A44F7XXXX
APP_NAME is the name of the application you want to activate. Our application names in API are: camstreamer, camoverlay, camscripter, camswitcher, planetracker
VERSION is the licensing API version that is currently in use
LICENSE_CODE is the license code you want to assign to the camera serial number. E.g. CS-R4U4KXXXXXXXXX
EMAIL is the email you want the camera and license to register to

Server response

After successfully sending camera and license information to our server, you should get a response in this format:

{
    "code": 200,
    "message": "OK",
    "Expire": 0,
    "Signature": "75fe128adb855e365925d1b19c5024897048145779994239462e8334dbfcc8cb",
    "LicenseCode": "CO-R4U4KXXXXXXXXX",
    "LicenseParams": "{\"expire\":0}"
}

where

code response code from the server
message is a status message indicating error sources (if there are any)
Expire is the expiration date of the license, for full licenses value is always 0
Signature is a unique hash calculated on our server
LicenseParams is an object with the parameters of the license used for license validation

Errors

{
  "code": "ERR_INVALID_ARGUMENT",
  "message": "Invalid email address given 'not-valid-address.com'."
}

{
  "code": "ERR_FAILED_TO_ACTIVATE",
  "message": "This camera already has an unlimited license."
}

{
	"code": "ERR_FAILED_TO_ACTIVATE",
	"message": "This license code has already been used."
}

Saving the signature to the camera

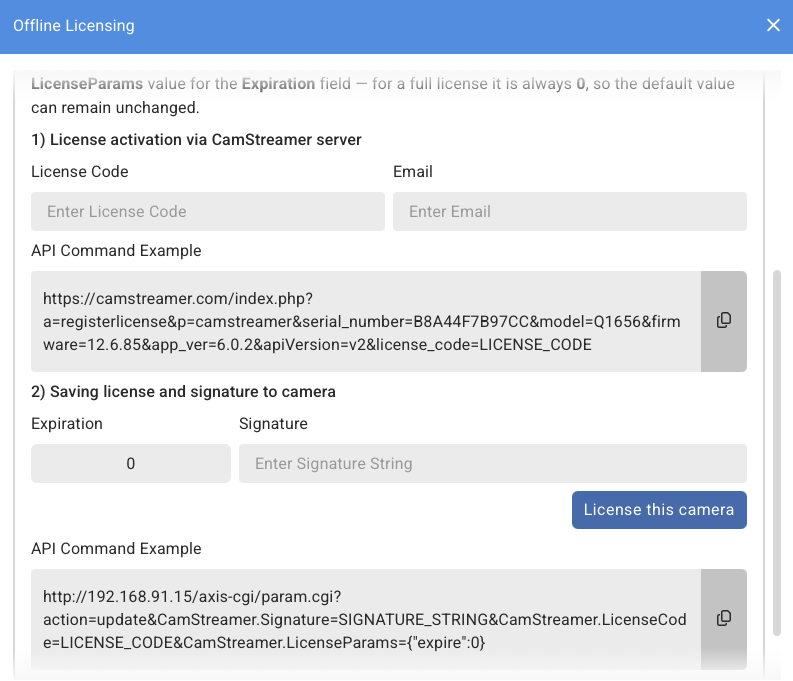

After successfully obtaining the response, you have to load app_parameters to the camera using a device in the offline environment. Note that before the name of the parameter, you have to put “APP_NAME.” See the example below:

http://USER:PASS@IPADDR[:PORT]/axis-cgi/param.cgi?action=update&APP_NAME.Signature=SIGNATURE_STRING&APP_NAME.licenseparams=LICENSE_PARAMS&APP_NAME.LicenseCode=LICENSE_CODE

where

USER is the camera Axis camera user name. E.g. root
PASS is the password for the Axis camera user. E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
APP_NAME is the name of the application you want to activate. Our application names in API are: camstreamer, camoverlay, camscripter, camswitcher, planetracker
SIGNATURE_STRING string with the signature from the first response from Generating a signature for the camera on our server section
LICENSE_PARAMS is the object with values obtained from the server request. Input values without quotation marks and backslashes (\”). E.g. {expire:0}
LICENSE_CODE your license code used in the first request from the first server response

Example:

http://root:[email protected]:80/axis-cgi/param.cgi?action=update&camstreamer.Signature=75fe128adb855e365925d1b19c5024897048145779994239462e8334dbfcc8cb&camstreamer.licenseparams={expire:0}&camstreamer.LicenseCode=CS-R4U4KXXXXXXXXX

NOTICE

The APP_NAME.LicenseCode parameter (used in the 2nd request) is stored in the camera during licensing only for CamStreamer App and PlaneTracker App. Do not include this parameter in the 2nd request for other ACAP applications.

CamStreamer ACAP API

CamStreamer App 4.x API

CamStreamer Global Parameters

Parameter LiveLED (available till version 3.8.2)

Stream Parameters

Parameter enabled

Parameter mediaServerUrl

Parameter inputType

Parameter inputUrl EXPERIMENTAL

Parameter userVapixParameters

Parameter audioSource

Parameter avSyncMsec

Parameter active

Parameter trigger

Parameter schedule

Parameter prepareAhead

Parameter startTime

Parameter stopTime

Parameter statusLed

Parameter statusPort

Get the current status of a particular stream

Get current YouTube Live broadcast

Status of YouTube Live broadcast

Get the list of streams for a particular camera with its details

Practical Examples

Creation / modification of a new nonstop RTMP stream

Stopping an RTMP stream

Creation / modification of a new RTMP stream by pressing button 1

Creation / modification of a new RTMP stream from 2019-03-04 11:10 to 2019-03-04 14:10 in UTC+01

CSt WebSocket API

Authorization

Connection to CSt WebSocket

Type of CSt events

CamOverlay App 3.x and 4.x

CamOverlay Global Parameters

Parameter Enabled

Get and change the whole configuration of services

Overlay Object

Get the configuration of services

Set the configuration of services

Automation

HTTP request to display/hide the particular overlay

Service parameters

Images Parameters

Image Parameters

Scripter Overlay Parameters

API of services

Custom Graphics

Update text and text colors in text fields

Modification of the background image

Update of the picture from your storage

Update of the picture from camera storage

Update of the picture position

Info Ticker

COv WebSocket API

Authorization

Connection to the COv WebSocket

Type of COv events

Realtime drawing API

Currently implemented Cairo functions

Extended functions

CamSwitcher App 2.x API

Get the RTSP link of the video stream

Get the list of available playlists

Start a particular playlist

Get the list of playlists in the queue

Push a particular playlist to the queue

Play the next playlist from the queue

Clear the playlist queue

Switch playlist immediately

Get the list of available clips

Change master audio output

CSw WebSocket API

Authorization

Connection to WebSocket

Change the PTZ position of the camera

CamScripter App 2.x API

NOTICE

Package format of micro-app for the CamScripter App

File manifest.json

Parameter `LiveLED` (available till version 3.8.2)

Parameter `enabled`

Parameter `mediaServerUrl`

Parameter `inputType`

Parameter `inputUrl` EXPERIMENTAL

Parameter `userVapixParameters`

Parameter `audioSource`

Parameter `avSyncMsec`

Parameter `active`

Parameter `trigger`

Parameter `schedule`

Parameter `prepareAhead`

Parameter `startTime`

Parameter `stopTime`

Parameter `statusLed`

Parameter `statusPort`
